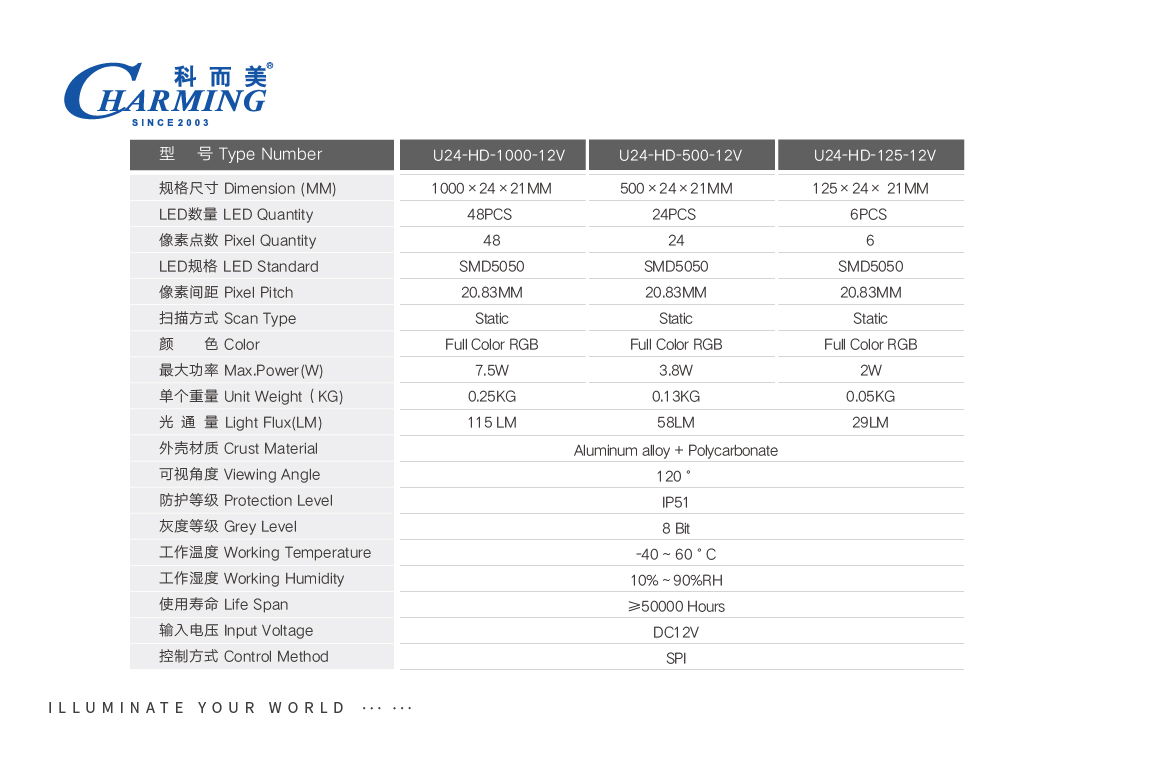

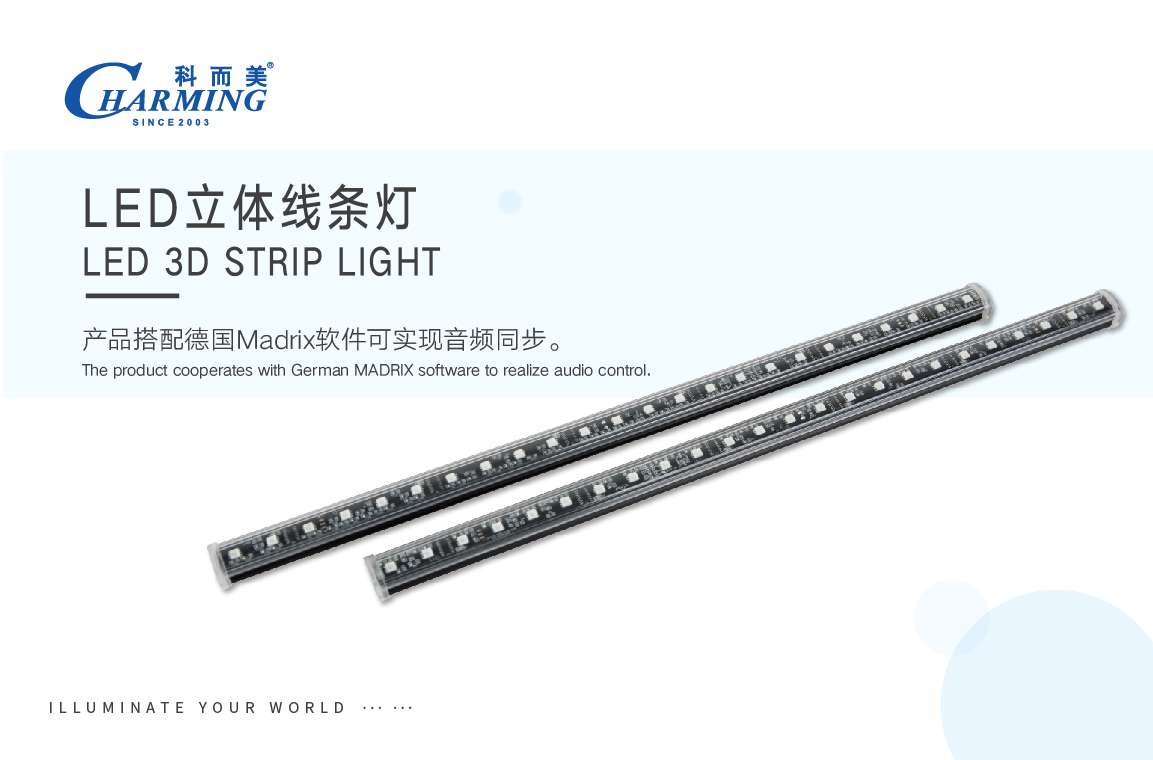

| 产品名称 Product Name | 立体线条灯U24 | 单点立体线条灯U24-HD | ||||
| 型号规格 Type and Size | U24-1000 | U24-500 | U24-125 | U24-HD-1000 | U24-HD-500 | U24-HD-125 |
| 成品代码 Code | COL.L.019.4001 | COL.L.019.4002 | COL.L.019.4003 | COL.L.019.6051 | COL.L.019.6050 | COL.L.019.6052 |

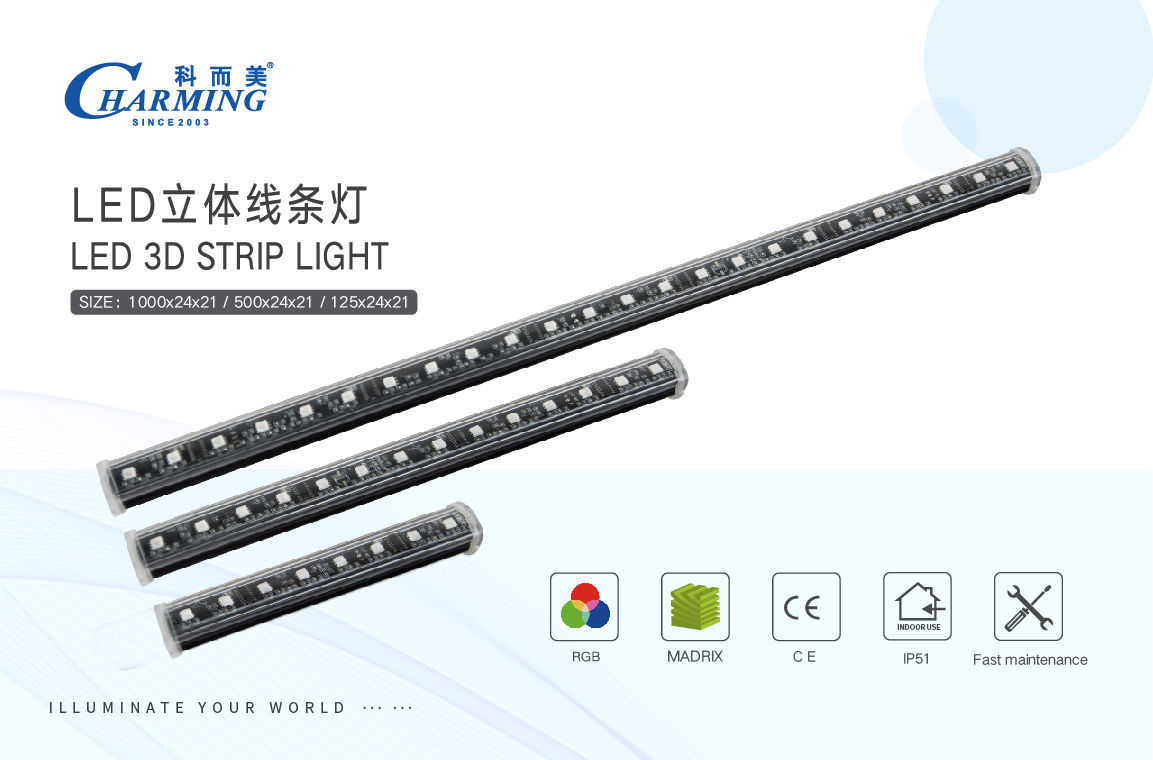

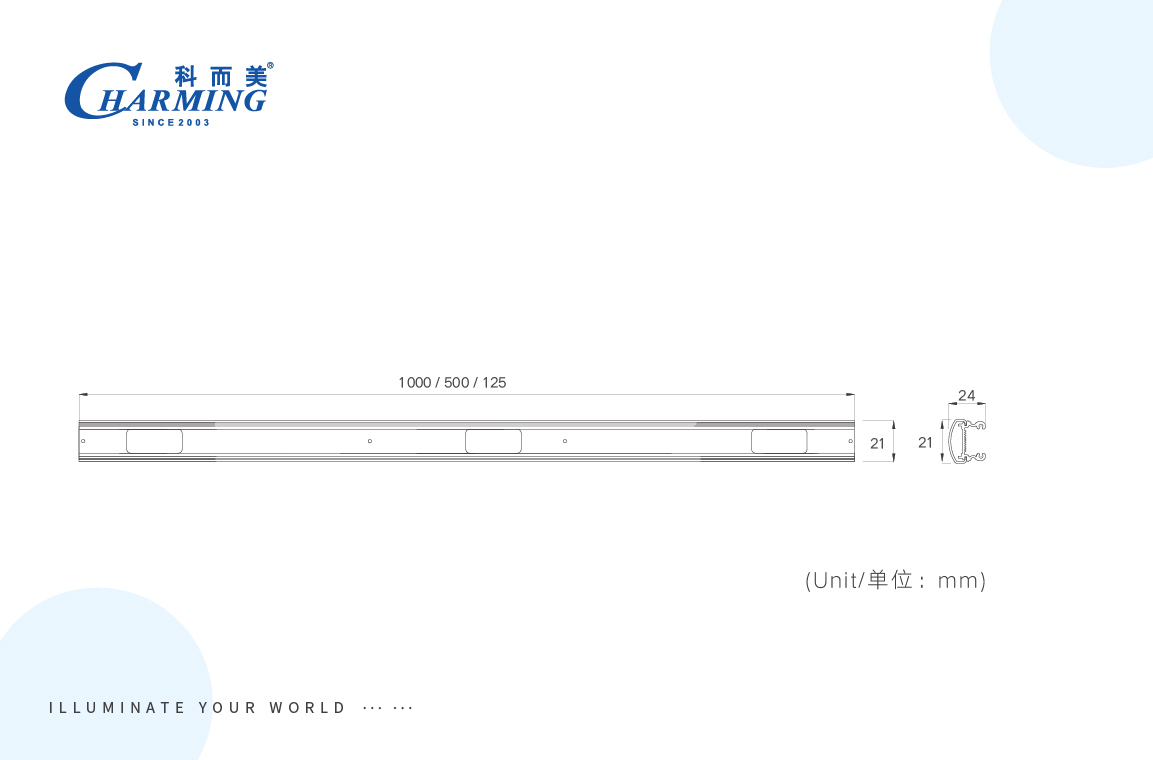

| 尺寸 Size | 1000X24X21mm | 500X24X21mm | 125X24X21mm | 1000X24X21mm | 500X24X21mm | 125X24X21mm |
| LED数量 LED Quantity | 48 | 24 | 6 | 48 | 24 | 6 |
| 亮度 Brightness | ≥120 lm | ≥60 lm | ≥12 lm | ≥120 lm | ≥60 lm | ≥12 lm |
| 像素点数 Pixels | 16 | 8 | 2 | 48 | 24 | 6 |
| 最大功耗 Max Power | 11W | 5.5W | 1.4W | 21.6W | 10.8W | 2.7W |
| 重量 Weight | 0.25Kg | 0.13Kg | 0.05Kg | 0.25Kg | 0.13Kg | 0.05Kg |
| 像素间距 Pixel Pitch | 62.5 | 20.83 | ||||
| 工作电压 Working Voltage | DC12V | DC7.5V | ||||
| LED规格 LED Size | SMD5050 | |||||
| 显示颜色 Display Color | Full Color RGB | |||||
| 扫描方式 Scan Type | 静态 | |||||
| 灰度等级 Grey Scale | 256 | |||||
| 可视角度 Viewing Angle | 120° | |||||

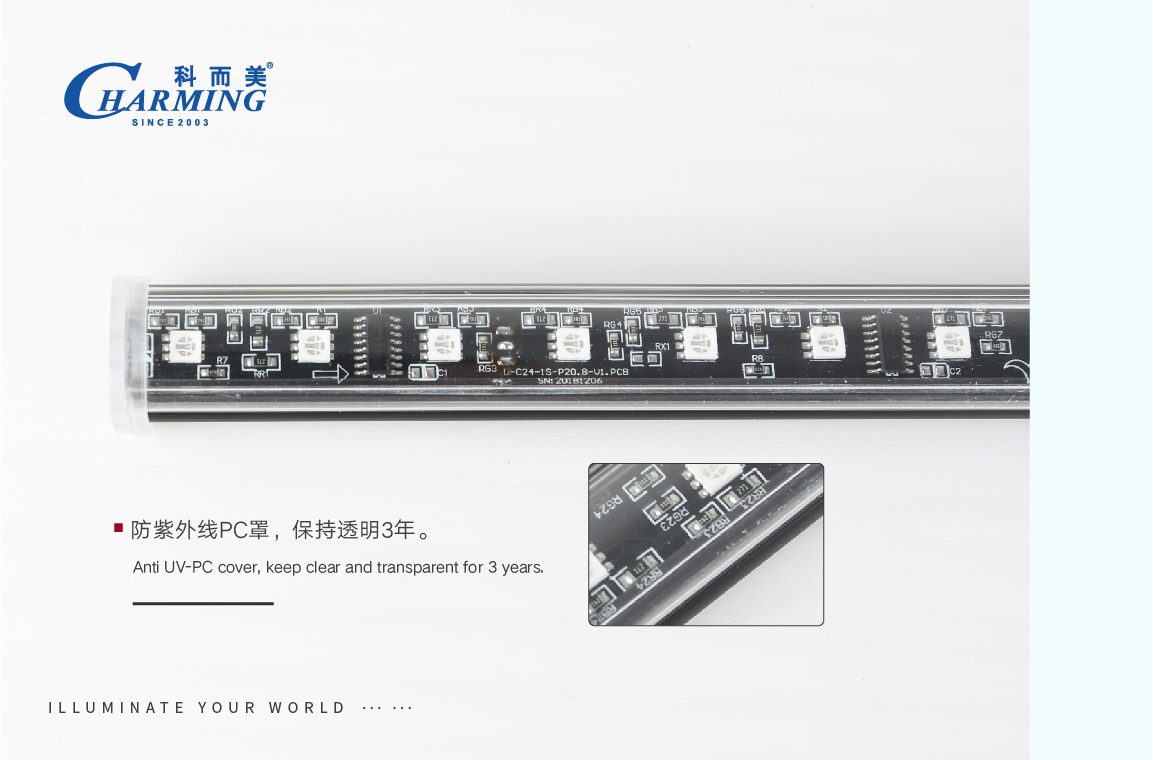

| 外壳材质 Material | 铝合金+PC | |||||
| IP等级 IP Grade | IP31 | |||||
| 工作温度 Working Temperature | -30～60℃ | |||||
| 使用寿命 Life Span | ≥30,000 Hours | |||||
| 控制方式 Control Method | DVI | |||||
